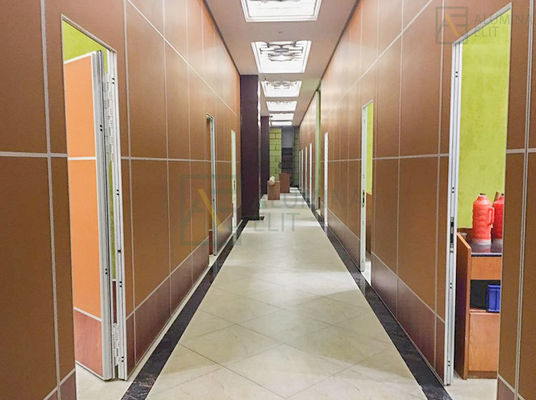

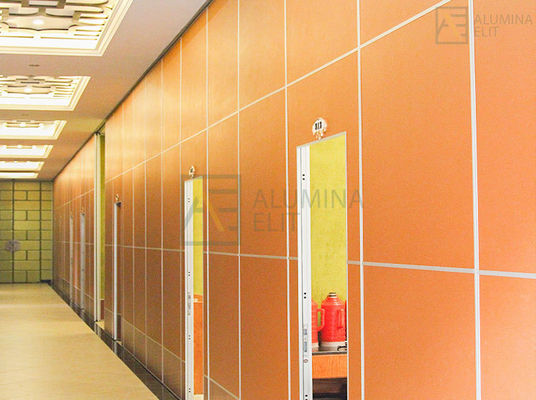

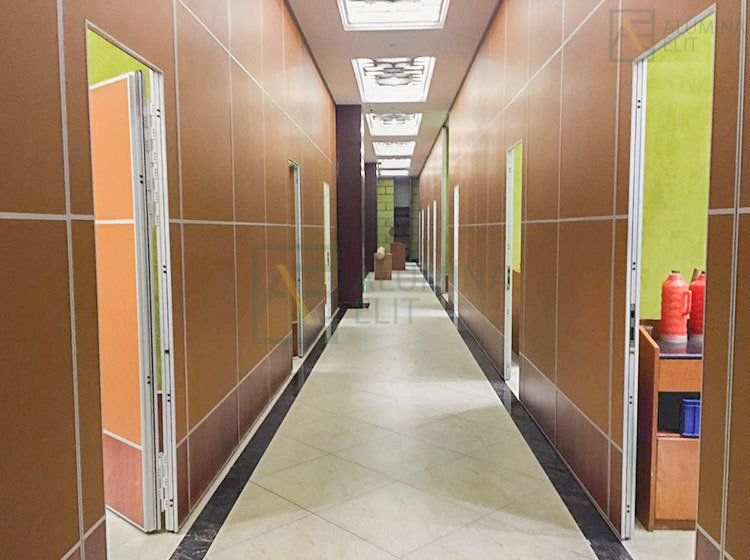

Moveable Acoustic Partition Walls

Our acoustic partition wall accessories are tailored to each client's unique project requirements and crafted from premium materials. Our track system is designed for right-angled configurations and features cross-roller carriers capable of supporting element weights up to 500 kg. Support rollers at junctions ensure smooth operation when sliding elements across intersections.

Soundproof partition walls are increasingly popular worldwide due to their exceptional performance. In addition to high sound absorption capabilities, our partitions have successfully passed eco-protection and fireproof tests. This ensures you receive a top-quality product that promotes a safe, comfortable, and eco-friendly lifestyle with low carbon emissions, while also providing a versatile and efficient partitioning solution.

• Utilizes Dupont POM rollers for exceptional performance and durability
• Built with 304 stainless steel, offering heavy-duty functionality, integrated safety features, and precision CNC machining
• Patented wheel design ensures the smooth and seamless operation of the entire movable partition system

• Thickness: 68mm & 89mm & 105mm
• Wide variety of acoustical and decorative finishes available
• 6061-T6 profile and inside Q235 steel frame for superior durability
• Top & bottom jack lifting mechanism seal with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56

Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m

* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
